Above-ground pipelines, exposed pipelines, industrial applications
−40°C to 60°C
60–200 µm
UV resistance, high abrasion resistance, flexibility and long service life

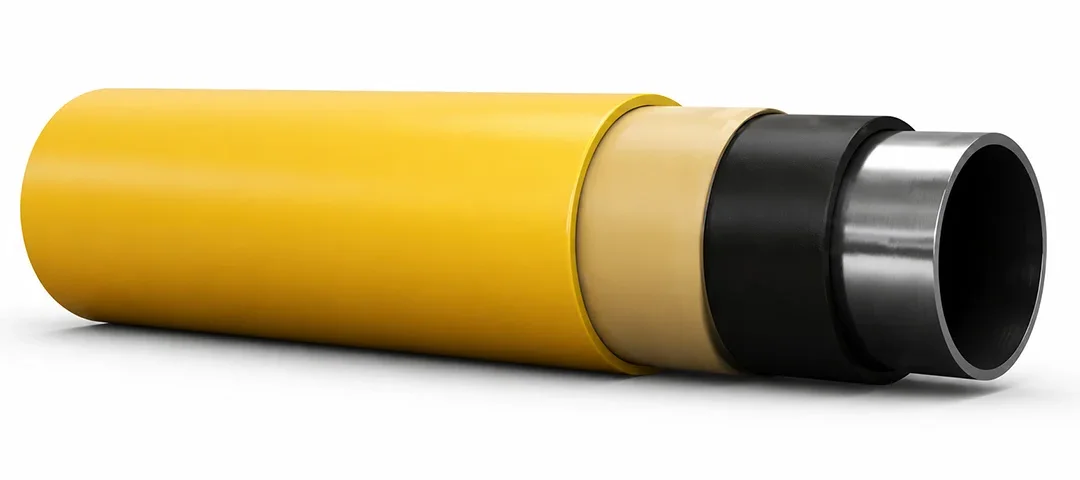

Steel Pipe; Surface Preparation; Polyurethane Coating
Water pipelines, underground pipelines
−20°C to 60°C
1.5–2.5 mm
Good adhesion, water resistance, easy and fast application

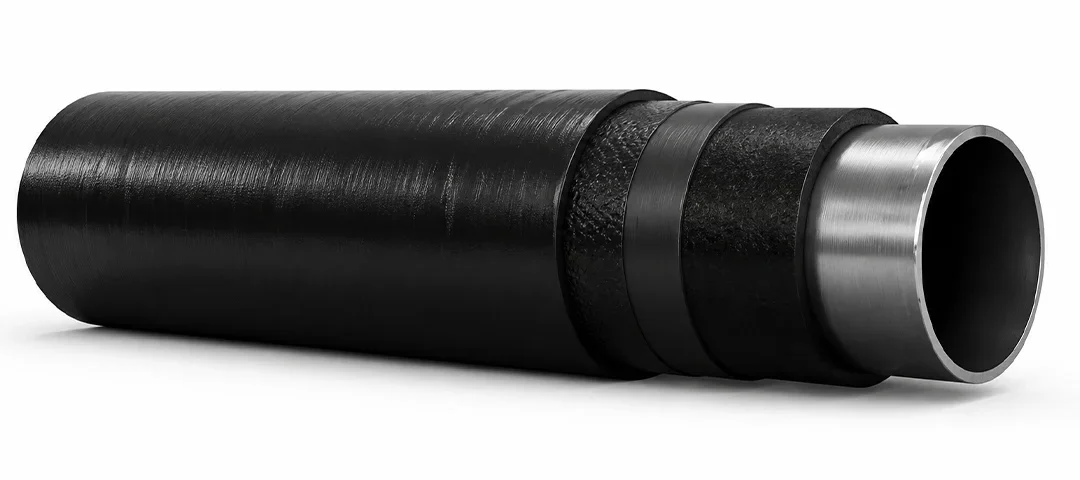

Steel Pipe; Surface Preparation; Bituseal Tape; Outer Wrap
Water pipelines, tanks, fittings, industrial structures
−20°C to 120°C
300–1000 µm
High build, excellent adhesion, chemical resistance, easy application

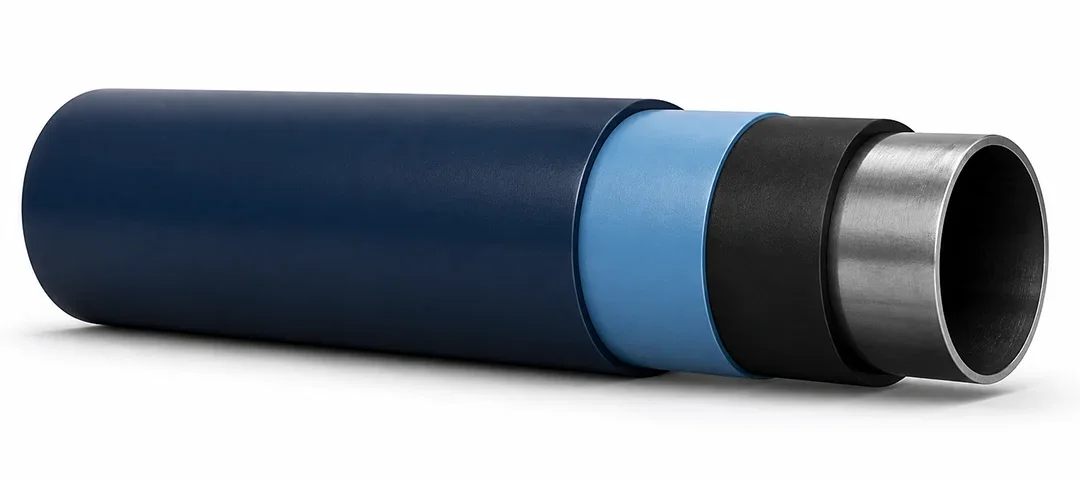

Steel Pipe; Surface Preparation; Liquid Epoxy Coating
Water pipelines, oil & gas pipelines, industrial applications
−50°C to 150°C
250–500 µm
Excellent corrosion and chemical resistance, high adhesion, cathodic disbandment resistance

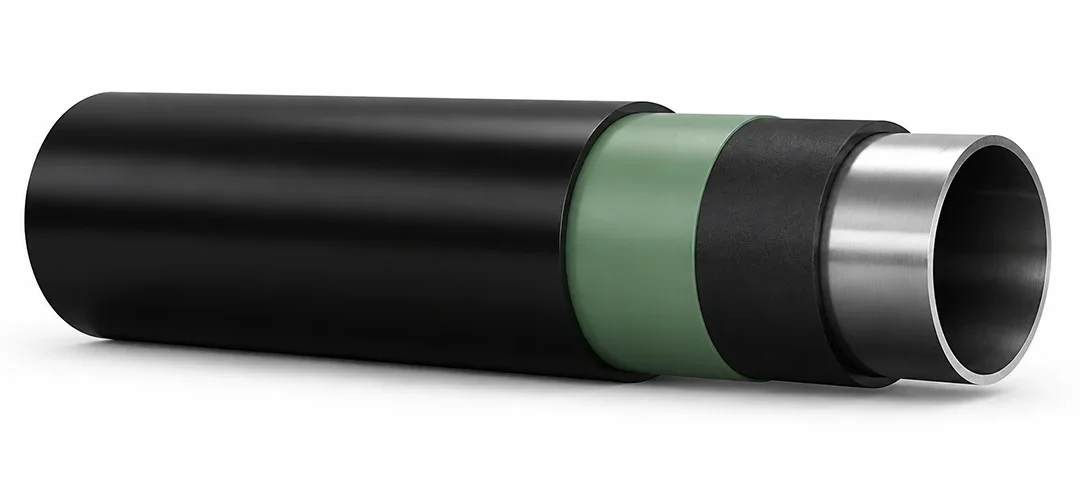

Steel Pipe; Surface Preparation; Fusion Bonded Epoxy
Oil & gas pipelines, water pipelines
−20°C to 60°C
1.5–3.0 mm
Excellent corrosion resistance, low cost, easy application and repair

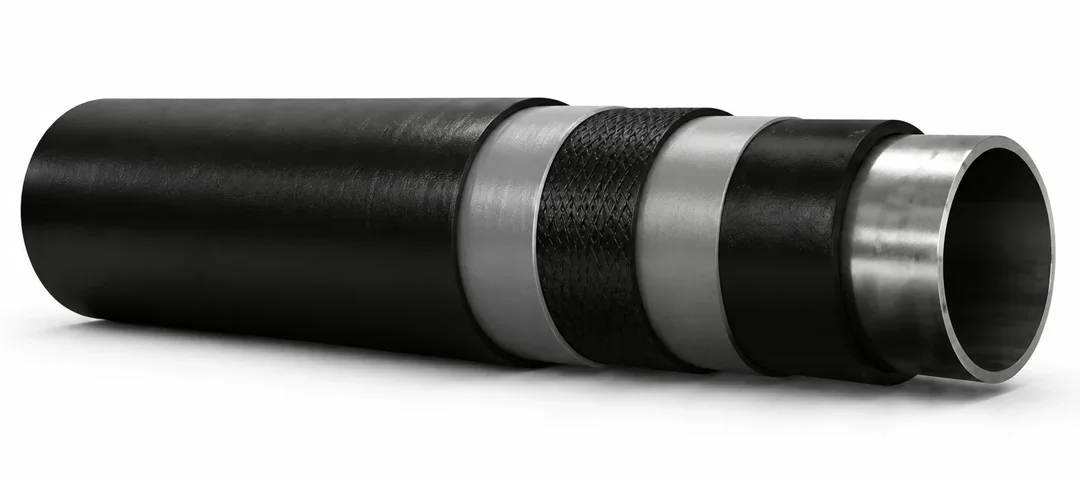

Steel Pipe; Surface Preparation; Bitumen Primer; Bitumen Enamel; Reinforcement (Optional); Outer Wrap (Optional)
Oil & gas pipelines, water pipelines
−40°C to 80°C
2.0–3.7 mm
Excellent mechanical strength, high impact resistance and cathodic disbandment resistance

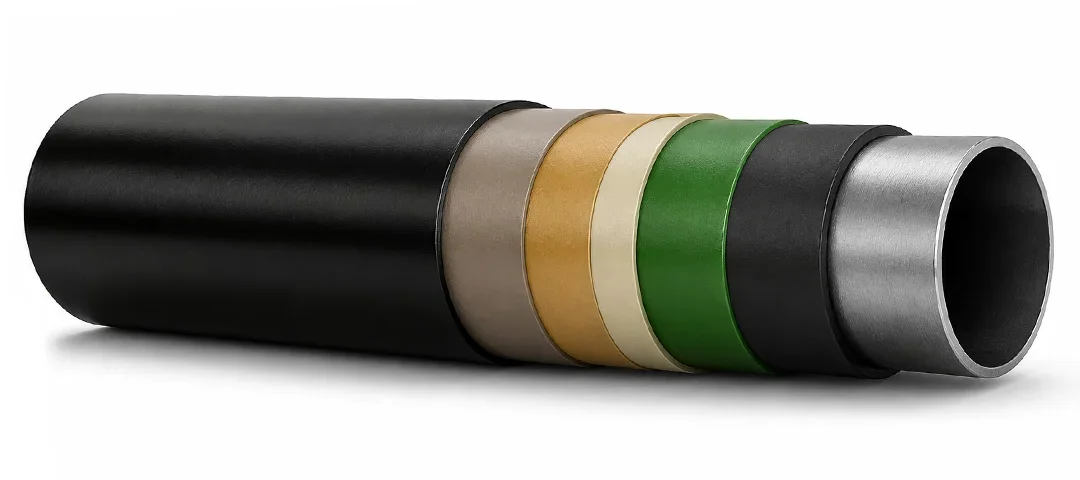

Steel Pipe; Surface Preparation; Epoxy Powder (FBE); Adhesive Layer; Polyethylene Layer
Water, wastewater, desalination
−10°C to 80°C
6–20 mm
Excellent corrosion resistance, long life, cost-effective

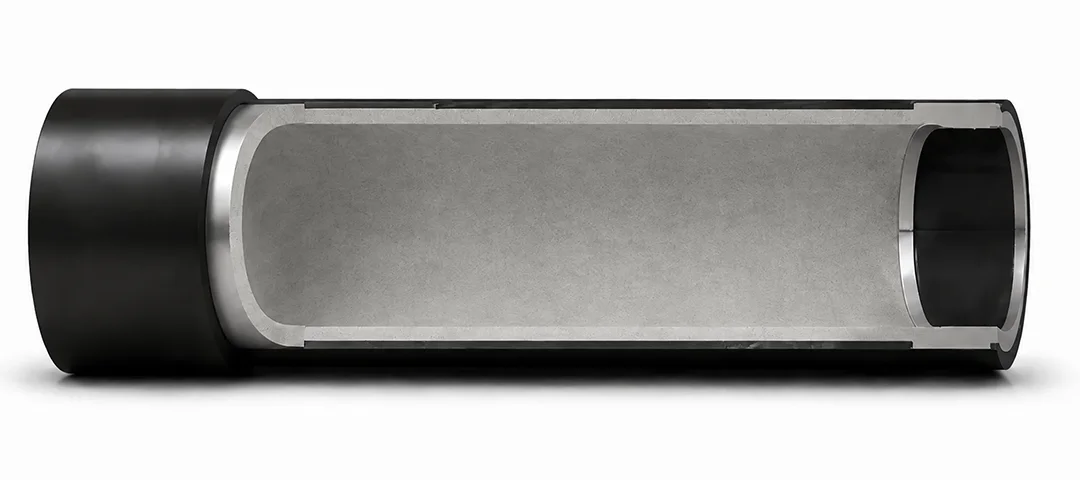

Steel Pipe; Surface Preparation; Cement Mortar Lining
Water pipelines, potable water
−20°C to 100°C
200–500 µm
Excellent adhesion, chemical resistance, smooth surface, easy cleaning

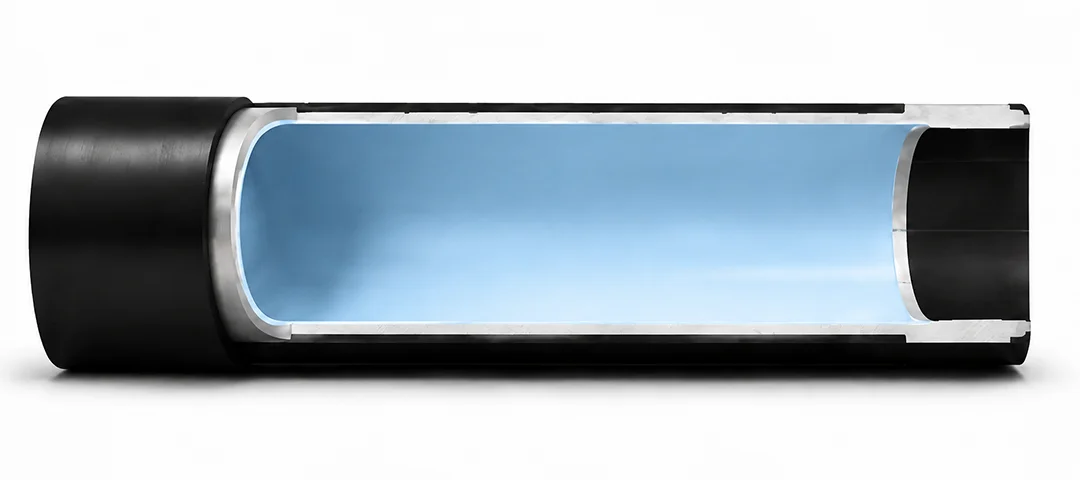

Steel Pipe; Surface Preparation; Liquid Epoxy Coating
Water, wastewater, oil & gas
−50°C to 150°C
250–600 µm
High corrosion resistance, inert surface, long service life
Steel Pipe; Surface Preparation; Fusion Bonded Epoxy
